Pressure Point Reinforcements

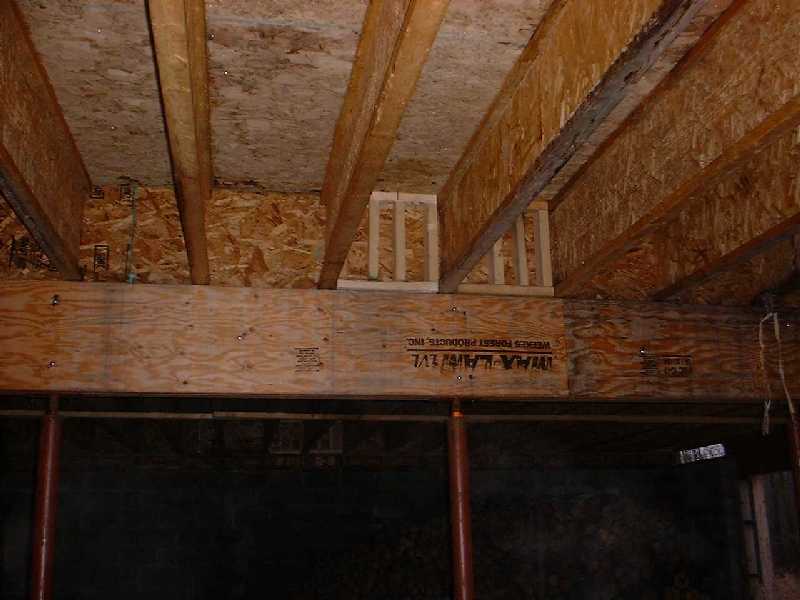

If you look back at the picture with the "A's" propped up, you'll notice each "A" has 3 pressure points at the bottom.  One for the main support column in the middle, and 1 for each long leg of the "A".  I figured with all the weight that could bear down on each or any of those 3 (9 total) points, a little support below the floor surface would be in order.  I'm only showing 1 corner and 1 center support area, but as I mentioned before, there are 16 total.  I put 2 support blocks under each center column on the ends, and 4 under the middle one, since the middle isn't nearly as strong as the ends.  I did the same for the front and back of the center "A" legs - supports on both sides.
